AeroTechTT Vento X 2 Extension Sytem
*Pre Order Only shipping in Mid June
*Price Includes Shipping and Import Costs. Please select Free Shipping at Checkout
*Available for Track/ TT/ Triathlon
*Please contact us after ordering to discuss your requirements. These will be assembled to order. INFO@GETMOREAERO.COM
*You have choice of the following:
Extension, Handgrips, Mounting, Angled Riser/ Custom, Arm Rests, Arm Padding

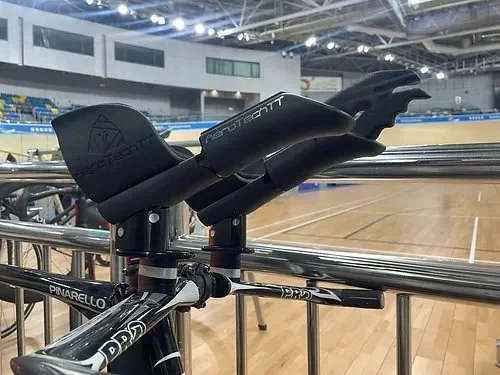

The Vento X Extension System
The VentoX aero extension system, designed to enhance your cycling performance. With optimized aerodynamics and adjustable features, it reduces drag, improves comfort, and delivers a power gain of 19.2 Watts at 50km/hr. UCI legal and compatible with most TT bikes, it's the ultimate solution for achieving an efficient and comfortable time trial position. Now, let’s move on to the introduction of VentoX in below.
Aerodynamics
At flat course, around 80% of the resistance is from aero drag, and the rider produce over 70% of the drag. With our aero extension, you can reduce the combine Cd of you and the bike by extension optimized extra wide aero shape, and the special ‘Wing’ profile armrest create a smoother airflow through your body and reduce the drag.
The extension providing an equivalent power gain of 19.2 Watts at 50km/hr, over a 40 km TT on a flat course, this is worth 43 seconds.
Compatibility
The extension system is UCI legal and could be adjust to different height category.
The extension system is compatible with most TT bike, the adjustable risers come supplied with either M5 or M6 mounting nuts for bolt up mounting. Please note you will require a dual riser stack system with a flat top riser stack and bolt centers spacing between 12.5- 40mm. Customize Spacer is also available to integrate the extension to your bike.
Material
The extension has tested in accordance with ISO 4210-5:2014 to secure the safety of using.
Handgrip: 3D printed Polyphthalamide+25% carbon fiber
Extension body: SLM printed AlSi10Mg-T6, CNC machined 7075-T6 Aluminum, 3D printed PETG Carbon Fiber.
Adjustable Angle Riser: CNC machined 7075-T6 Aluminum, stainless steel nuts
Armrest: 3D printedPolyphthalamide+25% carbon fiber
Garmin/wahoo mount: SLS 3D printed polyamide
Mount plate: CNC machined 7075-T6 Aluminum
What is included?
Extension body
handgrips
Adjustable Angle Riser
Armrest
5mm/8mm Armpad
3mm Extension pad
All bolts required for fixing
Garmin/wahoo mount [optional add on]
Mount plate [optional add on]
*Pre Order Only shipping in Mid June
*Price Includes Shipping and Import Costs. Please select Free Shipping at Checkout
*Available for Track/ TT/ Triathlon
*Please contact us after ordering to discuss your requirements. These will be assembled to order. INFO@GETMOREAERO.COM
*You have choice of the following:
Extension, Handgrips, Mounting, Angled Riser/ Custom, Arm Rests, Arm Padding
The Vento X Extension System
The VentoX aero extension system, designed to enhance your cycling performance. With optimized aerodynamics and adjustable features, it reduces drag, improves comfort, and delivers a power gain of 19.2 Watts at 50km/hr. UCI legal and compatible with most TT bikes, it's the ultimate solution for achieving an efficient and comfortable time trial position. Now, let’s move on to the introduction of VentoX in below.
Aerodynamics
At flat course, around 80% of the resistance is from aero drag, and the rider produce over 70% of the drag. With our aero extension, you can reduce the combine Cd of you and the bike by extension optimized extra wide aero shape, and the special ‘Wing’ profile armrest create a smoother airflow through your body and reduce the drag.
The extension providing an equivalent power gain of 19.2 Watts at 50km/hr, over a 40 km TT on a flat course, this is worth 43 seconds.
Compatibility
The extension system is UCI legal and could be adjust to different height category.
The extension system is compatible with most TT bike, the adjustable risers come supplied with either M5 or M6 mounting nuts for bolt up mounting. Please note you will require a dual riser stack system with a flat top riser stack and bolt centers spacing between 12.5- 40mm. Customize Spacer is also available to integrate the extension to your bike.
Material
The extension has tested in accordance with ISO 4210-5:2014 to secure the safety of using.
Handgrip: 3D printed Polyphthalamide+25% carbon fiber
Extension body: SLM printed AlSi10Mg-T6, CNC machined 7075-T6 Aluminum, 3D printed PETG Carbon Fiber.
Adjustable Angle Riser: CNC machined 7075-T6 Aluminum, stainless steel nuts
Armrest: 3D printedPolyphthalamide+25% carbon fiber
Garmin/wahoo mount: SLS 3D printed polyamide
Mount plate: CNC machined 7075-T6 Aluminum
What is included?
Extension body
handgrips
Adjustable Angle Riser
Armrest
5mm/8mm Armpad
3mm Extension pad
All bolts required for fixing
Garmin/wahoo mount [optional add on]
Mount plate [optional add on]
